| Project Highlights | |
|---|---|
| Project: | Erongo Gold Project |
| Subsidiary: | Antler Gold Namibia (Pty) Ltd |
| Commodity: | Gold |
| Location: | Erongo Region, Namibia |
| Ownership: | Up to 100% - EPL Specific |
| Total Coverage: | ~181 km2 (18,115 ha) |
| Deposit Style: | Orogenic-gold, Turbidite-hosted gold |
| Key Attributes: | Neighbouring Twin Hills Gold Deposit (Osino Resources) and Navachab Gold Mine (QKR) |
| Asset Stage: | Exploration |
- Covers highly prospective areas of the Damara Mobile Belt for Gold
- Overlies similar lithologies and structures as the known Namibian Gold mines (QKR’s Navachab) as well as Osino Resources’ recent Twin Hills discovery (±3.2 Moz Au)
- 4,956 line km’s of Helimag flown
- Initially identified 7 Au targets from Helimag (C1 to C7); Current targets include, in order of priority, C2 S, C2 Ext1, C3, and C2 Ext2
- 102.25 line-km IP surveyed across targets C1 and C2
- 2,861 m of RC drilling completed over target C1
- Four holes intersected significant Cu-Ag-Au mineralization (C1L14-4-3, C1L14-4-3A, C1L14-4-3B and C1L14-4-3C)
- 1.2% Cu over 40 m (29 – 69m) and 11.2 g/t Ag over 42 m (27 – 69m) in RC hole C1L14-4-3B, and 1.5 g/t Au over 11 m (11 – 22m) in RC hole C1L14-4-3.

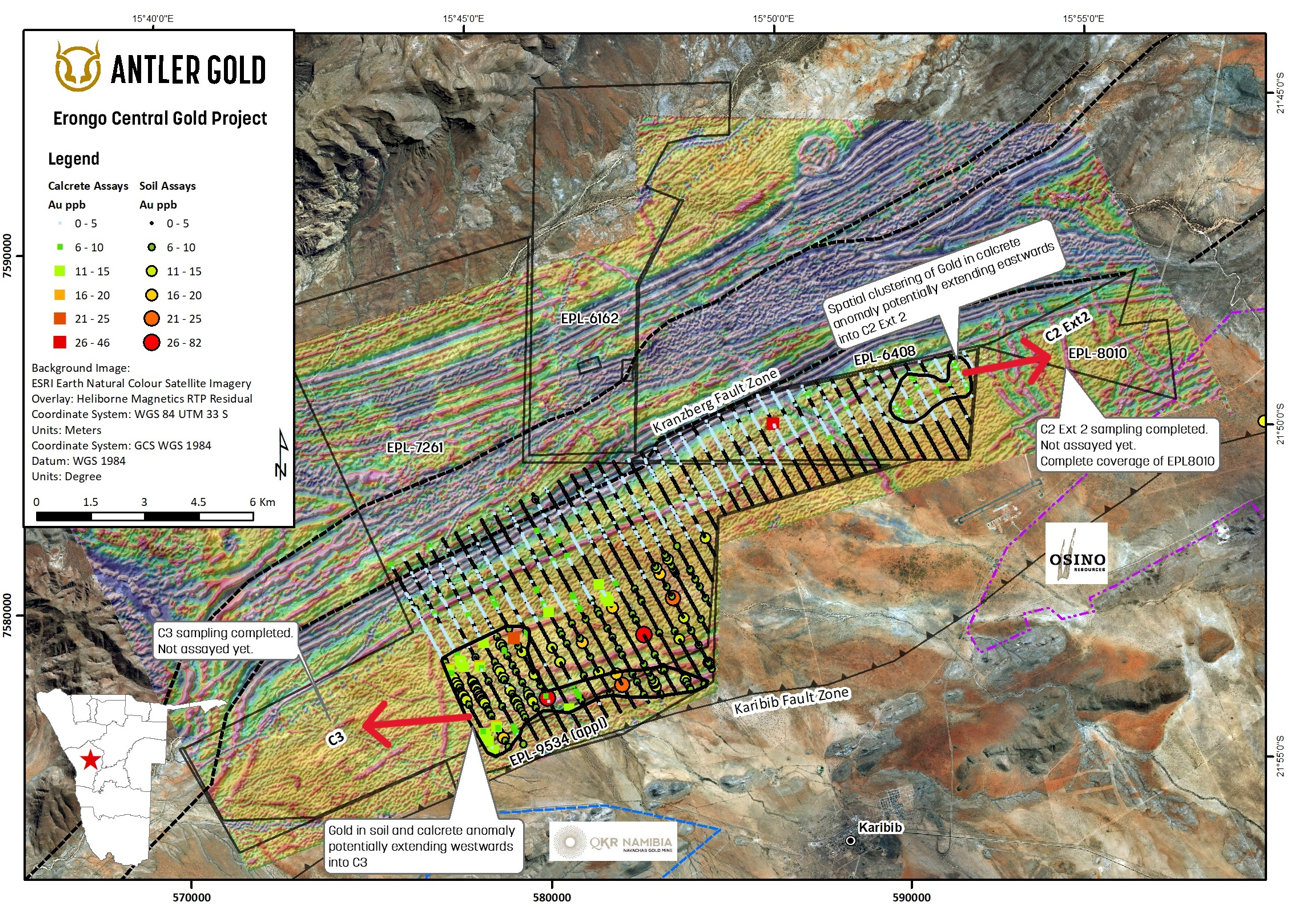

- 6,557 Soil and calcrete samples collected (incl. QA/QC)
- 10 km Au in soil and calcrete anomaly identified (C2 Ext1) and (C2 S) supported by coincident linear anomalously magnetic features.
Work Done to Date
| Work Done | EPL-7261 | EPL-6162 | EPL-6408 | EPL-8010 | EPL-9534 appl. | Rationale |
|---|---|---|---|---|---|---|
| Geophysics – NRG Heliborne Radiometrics & Magnetics | Partial coverage | Partial coverage | Complete coverage | Complete coverage | Complete coverage (historically flown over EPL-7960 (expired) | Existing regional airborne data of insufficient resolution to define targets. |
| Geophysics - IP | ~20 x 2.6-line km (C1 and C2) | ~5 x 2.6-line km (C1) | ~10 x 2.6-line km (C2 Ext) | - | - | To delineate drill targets along a 9km portion of the Kranzberg Fault Zone extending westwards from the Onguati, Brown Mountain and Western Workings prospects. |
| Geological Mapping | ~24-line km (C1) | ~13-line km (C1) | ~29-line km (C2 Ext1) | - | - | To augment the GSN 1:250 000 and local historical geological mapping both in terms of lithology and structure. |
| Soil & Calcrete Sampling | 1st campaign: 1910 samples on C2 (incl QAQC) 2nd campaign: 1272 samples on C2 South (incl QAQC) 3rd campaign: 1449 samples on C3 (incl QAQC) Not Assayed yet | - | 1191 samples on C2 Ext 1(incl QAQC) | 507 samples (on C2 Ext 2 (incl QAQC) Not Assayed yet | Historically sampled during validity period of EPL-7960 (expired) 228 samples on C2 South (incl QAQC) | Limited or no outcrop on these targets. Geochemical soil and calcrete sampling required to define anomalous areas for follow up investigation. |
| RC Drilling | 1070 m 6 x RC Holes (C1 Target) | 1791 m 9 x RC Holes (C1 Target) | - | - | - | To drill test and validate delineated exploration targets along the main Kranzberg Fault Zone. Field mapping and geophysical surveys conducted over C1 target were used to construct a working exploration model for delineating drill targets along the C1 target. |
| Drill Sample Assays | 1231 samples (incl QAQC) | 2060 samples (incl QAQC) | - | - | - |
Drilling Results on C1 (EPL-6162)
- 2,861 m of RC drilling completed over target C1 Target in 2021 (EPL6162)
- Four holes intersected significant Cu-Ag-Au mineralization (C1L14-4-3, C1L14-4-3A, C1L14-4-3B and C1L14-4-3C)
- 1.2% Cu over 40 m (29 – 69m) and 11.2 g/t Ag over 42 m (27 – 69m) in RC hole C1L14-4-3B, and 1.5 g/t Au over 11 m (11 – 22m) in RC hole C1L14-4-3.
Significant Untested Potential - Drill Ready Targets C2 South & C2 Ext1
- 4 Active Exclusive Prospecting Licenses with Total Area: 18,115 ha
- High Priority and DRILL READY Targets:
	- Target C2 Ext1 (EPL-6408) identified from anomalous gold in soil and calcrete
- Target C2 S is an ~7 km long Au in soil anomaly situated SW of Twin Hills deposit (3.2 Moz) within the same synclinal rock package (Kuiseb Formation) and sharing structural similarities

- Additional Exploration Targets C2 Ext2 (EPL-8010) and C3 (EPL-7261)
C2 Main, C2 South, C2 NE Extensions (Ext1 and Ext2), and C3 have not been drill tested to date and represent significant potential to host mineralization. This may be demonstrated by:
- The regional-scale Fault Zones (Karibib and Kranzberg) have played a substantial role in gold mineralization (Twin Hills, Osino Resources).
- The significant Karibib – Kuiseb lithological contact, though largely unexplored and covered by Quaternary sediments, represents an important regional mineralization target. (Twin Hills, Osino Resources).
- Identified a significant 7-km anomalies range of 10 to 405 ppb Au (background of less than 5ppb)
- Located directly SW from Osino Resources Twin Hills Discovery
- The regional-scale Kranzberg Fault Zone, a deep-seated structure that potentially plays a major role on smaller-scale structural domains that control gold mineralization. Structures associated with the D3 / D4 event have been shown to be important conduits for hydrothermal fluids and highly prospective for gold mineralization (Steven, 1993), as demonstrated by the Navachab Gold Mine. The OBW deposits on target C1 lie along this fault zone which is located to the north of and runs parallel to the Karibib Fault Zone, defined by Osino Resources and interpreted to be responsible for the mineralization in the Twin Hills Project (Underwood, 2019).

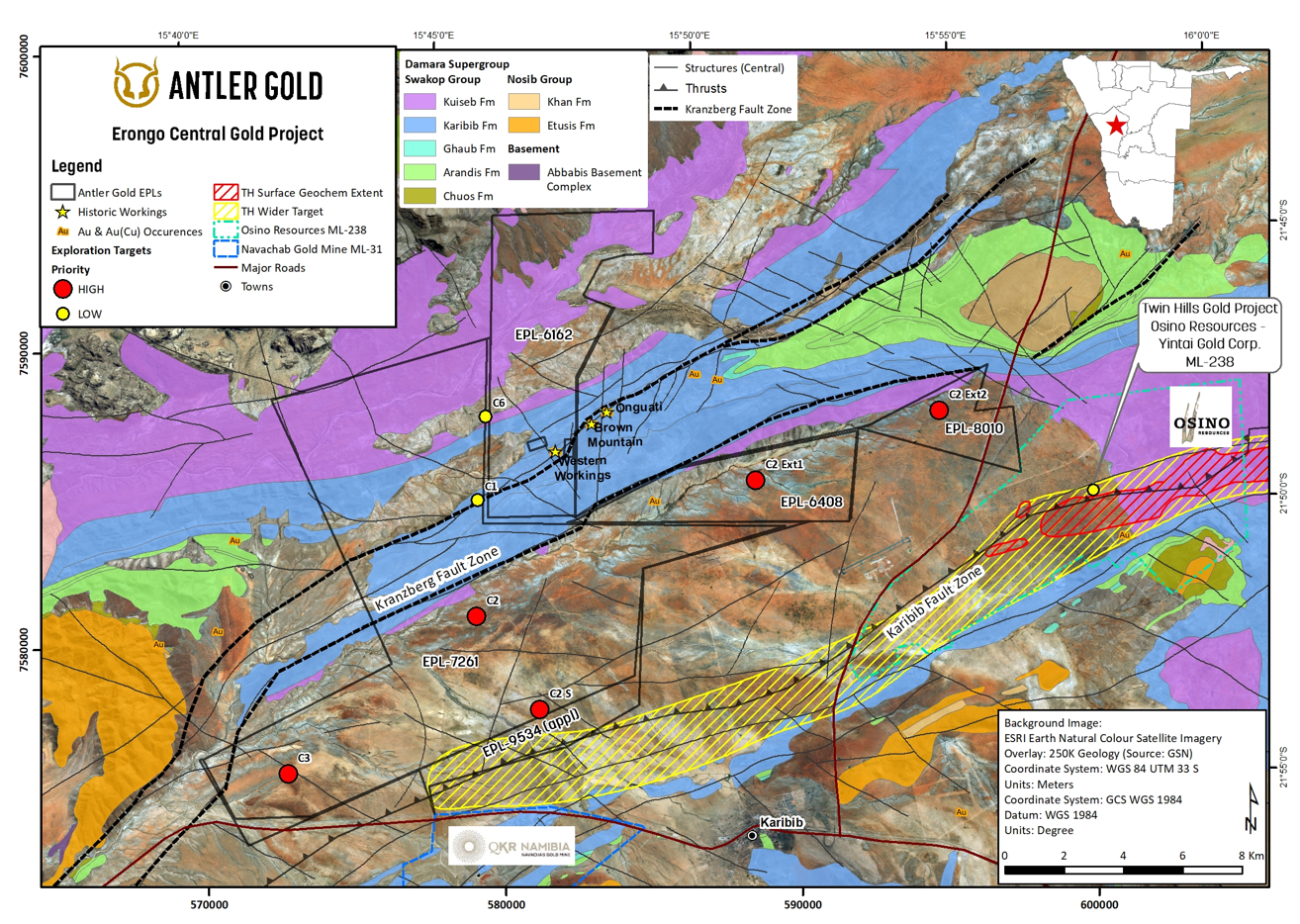

Geology of the Erongo Gold Project
The Erongo Gold Project is hosted by rocks within the Southern Central Zone of the Damara Orogen. This terrane comprises mid Proterozoic granitic basement inliers, overlain by metamorphosed late Proterozoic arkoses, shelf carbonates, turbidites and minor volcanic rocks that have been intruded by numerous granites and pegmatites.
The bulk of the Project area is underlain by meta-sedimentary rocks of the Nosib Group meta-arkoses (Etusis Formation) or the stratigraphically younger Swakop Group marine carbonates and meta-turbidites comprising the Arandis Formation (biotite schist, minor quartz schist calc-silicate rock and amphibolite), the Karibib Formation (dominantly dolomitic and calcitic marbles with minor calc-silicate) and the overlying Kuiseb Formation (schistose quartz feldspar mica meta-greywacke and meta-pelite). Glaciogenic mixtites of the Chuos and Ghaub Formations have limited exposure in the project area. The Swakop Group sediments have been intruded by a series of syn-, late-syn- and post-tectonic granite and pegmatite bodies.
The Erongo Gold Project is straddled by the magnetically defined regional scale Omaruru and Welwitschia Lineaments in the west and the Abbabis and Erongo Lineaments in the east. These lineaments are interpreted to be important tectono-stratigraphic boundaries associated with changes in sedimentology, structure and type of granitic intrusion observed in the Damara Orogen and have known association and control with uranium and other forms of mineralization. The structural setting of the Project area is fairly complex with sediments deformed during poly-phase deformation and metamorphosed to upper greenschist-amphibolite facies.
The structural geology of the Erongo Gold Project area is dominated by features typical of the Southern Central Zone of the Damara Belt; Abbabis Basement and/or basal Damara meta-sedimentary rocks in the cores of dome and anticlinal structures and regional synclinal structures with thick packages of Kuiseb Formation schists occupying these synclines. The larger, earlier folds tend to have fold axes with a north-east, south-west direction, parallel to the Omaruru Lineament, and these were subsequently deformed into open basin and dome structures or boudinaged in the more competent lithologies. Later cross cutting lineaments parallel to the Welwitschia Lineament are also evident. These NNE trending structures appear to be loci for mineralised fluid movement.
The gold mineralization in the Damara Belt in general, including Otjikoto, Navachab, Ondundu, Onguati and Twin Hills all share various similarities including stratigraphic position and relationship to regional and local structure. A significant relationship is observed between gold and quartz - sulphide veins hosted dominantly in schists and calc-silicate rocks and to a lesser extent within marbles and dolomitic marbles, as seen at Navachab (and associated satellite deposits). These discoveries and the historical gold deposits and occurrences, in general, highlight the Central and Northern Zones of the Damara Orogen, as a prime target for further discovery.
Antler recently discovered the previously unmapped Kranzberg Fault Zone. The Kranzberg Fault Zone is an arrangement of ENE and NNE trending thrusts and faults that can be traced for over 50 km and may have developed by reactivation of the larger Omaruru, Onguati and Abbabis Lineaments during the transpressional D3 / D4 Damaran deformation. Structures associated with the D3 / D4 event have been shown to be important conduits for hydrothermal fluids and highly prospective for gold mineralisation, as demonstrated by the Navachab Gold Mine and Osino's Twin Hills Project.
This fault zone is parallel to and shares many similarities to the Karibib Fault Zone which hosts Osino's Twin Hills Project. The associated Kranzberg Gold Trend, with peak historical rock assay values up to 80 g/t, stretches across Antler's Central Project from the Kranzberg Dome, in the southwest, through Antler's EPL 6162 and 7261 and around Antler's Etiro Dome property (EPL6550) in the northeast. In total, Antler holds approximately 20 km of strike length along this gold trend.
The Kranzberg Gold Trend contains a number of historical smaller scale mines and prospects including Onguati, Brown Mountain and Western Workings (all previously worked during the 1950's and 1960's). In addition, a number of significant gold in soil and gold in rock anomalies have been historically defined. These gold anomalies are located along the Kranzberg Fault Zone within Antler's EPLs 7261, 6162 and 6550 and contain gold in soil assays of up to 7000 ppb gold and gold in rock assays of up to 80 g/t gold, all against a background of less than 5 ppb gold. Note these results are historic and have not been verified by Antler. The historic mines, prospects and soil anomalies occur in association with folds; faults; fault splays and jogs; and late- to post-tectonic leucogranite intrusions, all typical of fertile orogenic belts.
The Kranzberg Gold Trend is located in the saddle region of a moderate-to-gently inclined doubly plunging anticline with associated large-scale, deep penetrating, crustal structures of the Kranzberg Fault Zone. Interpretation and delineation of this fault zone was only made possible by Antler's geophysicists through reprocessing of the Government regional aeromagnetic data taking cognisance of the negative impact of magnetic attenuation due to increased survey ground clearance required over the Erongo Mountains in the north of the Central Project. The Erongo Mountains are a post-Karoo aged volcanic caldera that tower 1,000 meters above the flatter plains of the Central Project. Downward continuing and reprocessing the data to mitigate the impact of non-ideal survey heights in conjunction with the initial field visit has resulted in the identification of this previously unrecognized but significant Kranzberg Fault Zone.
